Tuesday, June 3, 2008

here are a few shots of my model for the major assignment.


Sanding back some holes that had been filled up

Tightening the bolts for the connection plate

sawing the peices to make up the 'UB'

the model



ARTICLE 5

this article tells us of CFC engineering and non-residential construction forecasts, it also gives us a snap shot of the change in growth in the different non-residential construction areas and also tell us the growth state by state

http://www.aib.org.au/news/2005(Sept)CFC-Engineering.htm

Sunday, June 1, 2008

ARTICLE 4

this article tells us of how the building industry has been slowing down in recent times, but it mentions that the government has in increasing infrastructure therefore there is a good outlook for engineering.

from the Master Builders Association


construction Boost from Engineering as Building Stalls
28 May 2008
Construction work done rose in the March quarter on the back of strong engineering work done that stands in contrast to prolonged weakness in residential and a fall in non-residential building, according to Master Builders Australia, the peak body for the building and construction industry.Mr Peter Jones MBA’s Chief Economist said, “The outlook for engineering remains bright with State Governments upping their spending on infrastructure and a massive pipeline of resources-related work yet to be done.”Mr Jones said, “A weak albeit positive seasonally adjusted increase in residential building in the March quarter masks a negative trend that is set to deepen as the full impact of higher interest rates takes effect.” “A recovery is not likely to gain any momentum until well into 2009, when rates are likely to begin to shift down. Residential building has been flat to falling over the past four years and there is now a serious risk of a further ratchet down in activity. This would seriously compound the underbuilding some analysts put at 40,000 dwellings per annum, leading to a worsening of a chronic lack of rental stock, with implications for rent increases.”“Despite a quarterly fall that reinforces recent moderation in growth, non-residential construction activity levels should hold up provided business sentiment does not deteriorate markedly and profitability and therefore investment stays strong.”“Nonetheless, there remains a risk that construction growth will stall in the out-years unless there is a sustained upturn in residential building to offset any prolonged weakening in non-residential construction.”Seasonally adjusted, the chain volume of construction work done in the March quarter 2008 rose by 2.3 per cent to $30.0 billion to be 3.3 per cent above levels in March quarter 2007.The chain volume of seasonally adjusted building work done in the March quarter was flat, at $16.4 billion, to be down 1.3 per cent on the previous March quarter.• Work done on residential building rose by 0.3 per cent to $9.7 billion, to be down 2.6 per cent on the corresponding figure a year earlier.• Non-residential building fell by a seasonally adjusted 0.5 per cent to $6.7 billion, but is up 0.8 per cent on the previous year’s level.Engineering construction work done rose by a seasonally adjusted 5.2 per cent to $13.5 billion and was 9.5 per cent above the previous March quarter level.

ARTICLE 3

Another article here from the AIB, who want the wages for university lecturers higher, so that it can intice more students to become lecturers in the construction courses at university, because with students taking more lucrative jobs in the industry they will forget about the next students who need to be taught and we will end up with a shortage of lucturers.

http://www.aib.org.au/news/2008(March)UniSalaries.htm



The photos of this tilt-up construction building are of; Life Be In It center in South Geelong. it is being built by Max Finlay Constructions.



another close up of the rafter connection

connecting plate, yet to have rafter connected to it

rafter connection to plate


overall shot, shoeing rafters and purlins

tilt-up panels, weather proofing filler between panels and mortar at the bottom

mortar to bottom of panel

close up of rafter connection



ARTICLE 2

this article tells us hoe the AIB would like too see more building and construction students accepted into the courses, which will reduce wage pressures and inflation due to increased infastructure.

http://www.aib.org.au/news/2008/May-Budget.htm

again sowing the tilt-up panel in the formwork with rio, ready to make another


the top of a panel just after being sprayed with "bond breaker"

connecting parts of the rio together

the apex of the rafters

rafter connecting to the connectino plate

rafters

tilt-up panels

160 tonne crane getting ready to move a panel into place

spraying "bond breaker" onto a concrete panel made on site

getting ready to make another panel. reinforcemant is in place and formowrk

Footing for tilt-up panels



showing the tilt-up panels being held in place and also the connection plate that will connect the rafter.


shows a bloke welding the connection plate


connection plate

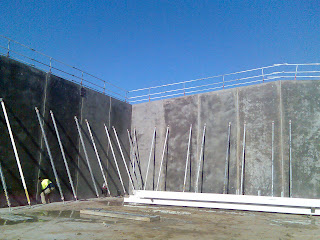

again tilt-up panels being supported

Thursday, May 22, 2008

ARTICLE 1

Here is a link to an article that compares the cost and use of concrete and steel in the Australian construction indstry.

http://digital.realviewtechnologies.com/?xml=crowther_masterbuilder.xml&startpage=20
week 6- composite construction


Monday, May 5, 2008

Deakin Uni Building.

Concrete column still being supported

Footing Connection from column

Pre-cast concrete stairs

Beam to column connections

Suspended ceiling

Showing connections to one of the main uprights
Showing connection to eaves


Carousel, Geelong Waterfront

Wednesday, April 16, 2008

week 2 - portal frame week 3 - end wall portal frame


week 4 - concrete wall panel

week 5 - end wall concrete wall panel

Tuesday, March 18, 2008

Bunnings Warehouse, Corio This first photo is of cross bracing for the roof, in a selected "bay" of the building.


This shows how the beams are connected in this building. Cloumn to rafter.
This shows the fly bracing, connecting from thr rafter to the purlin


An overall shot of the building.
